The piston within the main landing gear cylinder plays a crucial role in absorbing impact forces during landing and facilitates both the extension and retraction of the landing gear. As a key component of the landing gear system, the piston is attached to the cylinder and is responsible for cushioning the loads encountered during operation. The number and dimensions of these pistons can vary depending on the aircraft type, but all must adhere to stringent safety standards, which limits the selection to only a few suitable materials
These are mainly titanium alloys and high-alloy steels. But it is not only the materials that are demanding, the complexity of the components is also constantly increasing. In addition to the tool technology, the machining strategy is therefore particularly important. Contour milling, turning and holemaking are among the most important machining operations in this context.
Tooling solutions for components made of titanium alloys and high-alloy steels
- 3 cutting edges for maximum profitability
- 4 indexable insert types for flexible use
- Positive-locking indexable inserts for a secure hold in the insert seat
- Damping element flexibly mounted axially and radially
- Vibration-damping preset ex works
YOUR APPLICATION
Vibration-free turning of inner contours
OUR SOLUTION

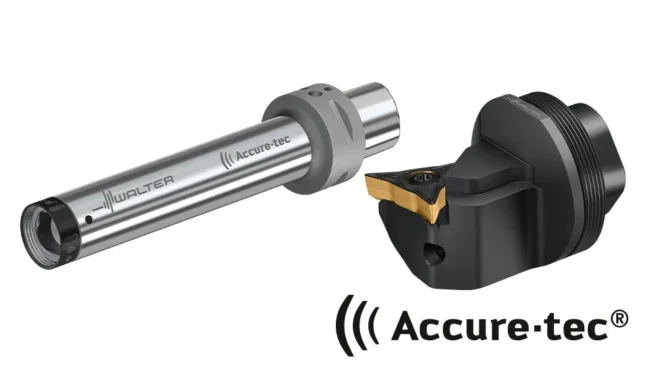

Accure·tec® vibration-damped tool adaptor with WL25
BENEFITS FOR YOU
High flexibility as well as maximum surface quality and process reliability due to vibration-free machining.
- Universal application with all ISO material groups
- Wear-resistant high-performance grade WK40TF
- Plug & play solution: Xill·tec® MC230 Advance and Walter GPS
YOUR APPLICATION
Roughing, dynamic milling, finishing
OUR SOLUTION
Walter Prototyp Xill·tec® solid carbide milling cutter MC230 Advance
BENEFITS FOR YOU
High flexibility due to universal applicability. Long tool life and lower tool costs due to high-performance grade WK40TF.
- Internal coolant supply for cooling directly at the drill insert
- Highly positive geometry
YOUR APPLICATION
Drilling of connection holes
OUR SOLUTION
Walter Drion·tec® exchangeable tip drill D4140
BENEFITS FOR YOU
High productivity due to short drilling cycles and reliable drilling without vibration as a result of the positive locking of the drill insert.
- 4 cutting edges per indexable insert
- Stable, tangential insert clamping
YOUR APPLICATION
Shoulder milling, roughing
OUR SOLUTION

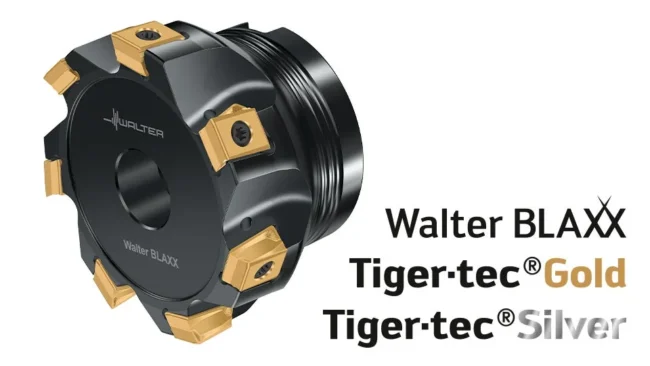

Walter BLAXX shoulder milling cutter F5141
BENEFITS FOR YOU
Highly reliable and cost-efficient tool with maximum stability.
