With a wide range of square, round and rectangular slider housings/locking heels and slide retainers, HASCO’s extensive portfolio of standard slide units offers numerous variable installation possibilities plus maximum process reliability.

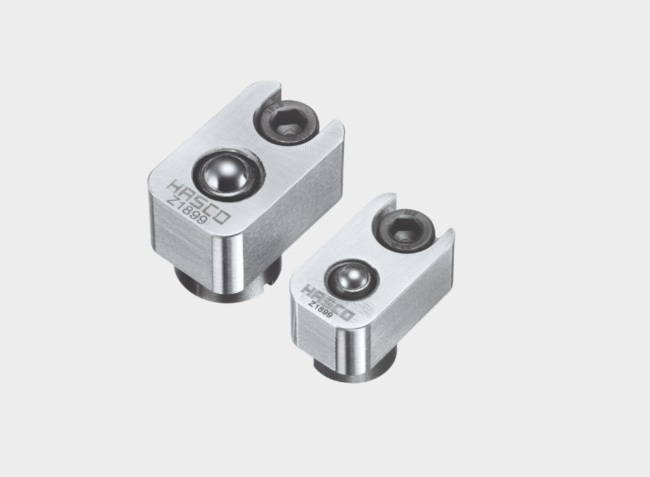

The new slide retainer Z1899/… is noted for its positive locking connection and permits secure slide positioning. Through the proven ball catch Z36/…, it also guarantees reliable locking.
The compact shape and the screw joint design of the slide retainer enable simple and fast replacement. Assembly and dismantling can be carried out directly from the parting plane. The product has versatile application possibilities because of its high temperature resistance up to 250 °C and its retention forces of 16 N to 63 N.
The new slide retainer Z1899/… is characterised by its outstanding cost-to-benefit ratio and the fact that it can be easily replaced with the help of the spring ball catch Z36/… . Therefore, it fits perfectly into HASCO’s slide retainer range.
