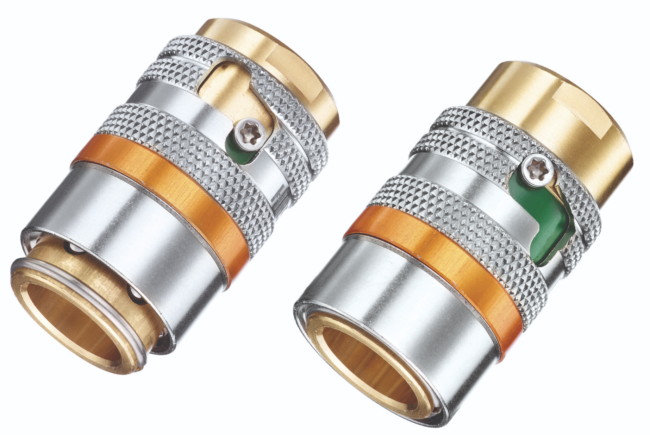

With the new innovative dummy safety coupling Z825HT/…, HASCO is offering a simple solution for the reliable closure of open temperature control systems, that also enables clean storage without any risk of the cooling channels becoming dirty. The new development combines maximum safety standards with user-friendly handling and thus complies with the highest demands of modern mould temperature control.
Automatic safety locking to prevent undesired decoupling
The new coupling is noted for its automatic safety lock, which reliably prevents unintended decoupling. This function is ensured by exerting a precise mechanical rotational force on the locking sleeve, which requires a specific manual unlocking action. An additional optical colour code in the locked state facilitates the visual checking and thus contributes to greater process safety.
No contamination through leaking media
The design of the article offers another advantage in that it prevents leakage. Z825HT/… not only provides for a clean working environment, but also protects against possible damage through leaking liquids. The high-temperature sealing rings of the coupling allow reliable sealing even under extreme conditions. They are designed for use at temperatures of up to 180°C with water and up to 220°C with oil, which significantly increases the range of possibilities, especially in the high-temperature range.
