hyperMILL® TURNING Solutions: Turret support for lathes with one turret, one main spindle and Siemens control system
The most recent release of OPEN MIND’s CAD/CAM package, hyperMILL® 2024, introduces advanced turning capabilities and enhanced algorithms. These updates streamline the entire digital workflow, from handling CAD data and CAM programming to generating refined NC code. Features like streamlined rest machining and improved machine interaction exemplify the software’s advancements.
Previous versions of hyperMILL® already offer a broad range of functions and strategies for turning, turn-milling and mill-turning. The key extension in hyperMILL® TURNING Solutions is turret support for lathes. This also underscores OPEN MIND’s determination to push ahead with the integration of digital twins of machining centers: Lathes with one main spindle, one turret and a Siemens control system are now mapped with all tools true to the original machine with the help of hyperMILL® VIRTUAL Machining. Users can conveniently equip the turret with turret holders and tools in the Virtual Machine machining planner and use the resulting setup for NC code simulation.
Reading Back Measuring Points
Another useful application of virtual machining technology is the reading back of measuring points. This means that users can use the 3D model of a component to see at a glance which measuring points are outside the tolerance. As a result, it becomes much easier to analyze inaccuracies and tool wear after milling and then compensate for these in the CAD/CAM system. Moreover, the hyperMILL® SHOP Viewer makes this new function directly available on the machine tool.

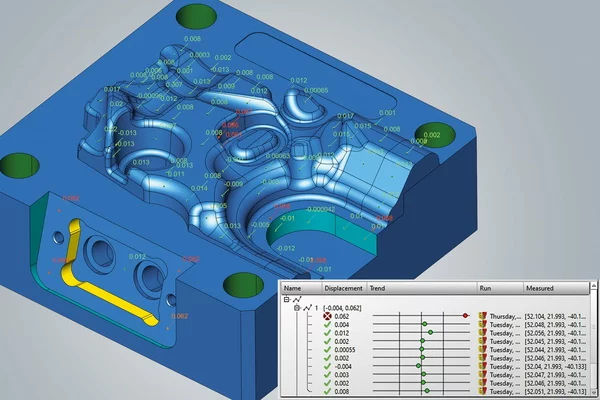

Measuring points read back for improved quality and process control. The 3D model of the component shows at a glance which measuring points are outside the tolerance.
CAD for CAM
hyperMILL 2024 also offers various new features concerning ‘CAD for CAM.’ hyperMILL® supports the import of PMI (Product Manufacturing Information) and MBD (Model-Based Definition) data in various formats such as STEP, CATIA V5, SOLIDWORKS, Creo and Siemens. Improved functions for surface modelling now allow users to generate surfaces from a large number of grid curves. Another important CAD innovation is an improved electrode creation strategy that now supports three-dimensional eroding.

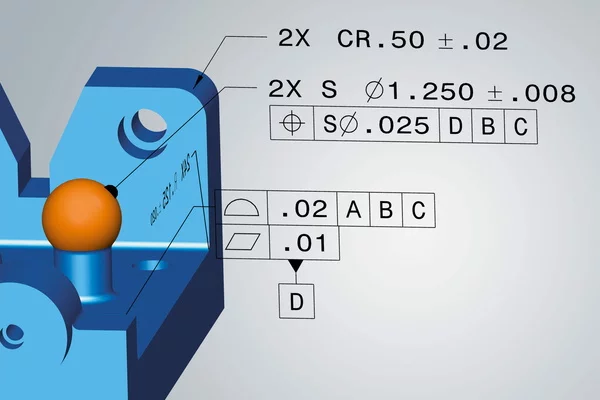

CAD for CAM: hyperMILL® supports the import of PMI and MBD data in various formats
5-Axis Path Correction
Comparable to the 3D radius correction to account for the tool wear or deflections, 5-axis path correction is now possible – initially for Heidenhain control systems. Vectors are written to the cutter contact point in the NC program to ensure precision correction on the machine control. The NC control uses these contact vectors to move the NC points by a defined adjustment value during machining.
Improved Machining Strategies
A new algorithm for rest material detection ensures automatic complete detection of all rest material areas in both 3D and 5-axis machining. The algorithms for calculating the trajectory have also been optimized. The cutting edge machining for punching tools 3D strategy has undergone several improvements. This includes the optimization of collision avoidance when performing machining based on a reference job. Machining is carried out collision-free as far as this is possible for the given tool clamping length. The ‘Soft overlap’ option makes it possible to smoothen the approach and retraction moves. A new algorithm also improves the toolpath calculation for 3D plane machining, resulting in even faster, more uniform and more tool-friendly machining.

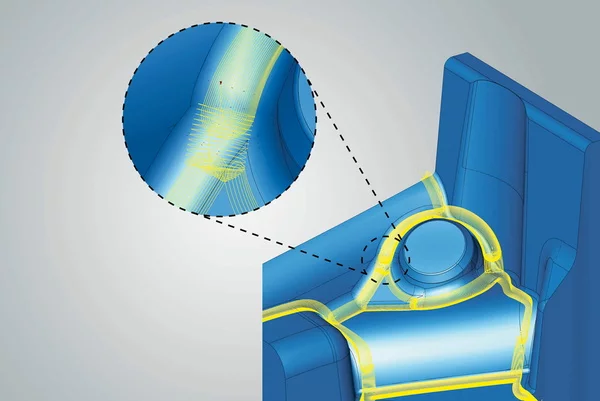

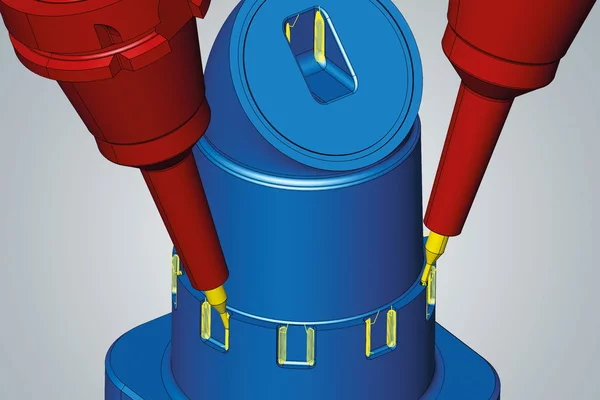

In 3D machining (left) and 5-axis machining (right), new algorithms for rest material detection ensure that all rest material areas are automatically accounted for in full.
Safety in ‘Unmanned’ Production
To safeguard against long unattended machining cycles, hyperMILL® now allows tool breakage monitoring to be activated in the tool database to make it part of the machining program. This information is processed during NC generation on the virtual machine. The generated NC program includes the corresponding control macro call.
Tool Synchronization with the Hummingbird MES
In the new version, tools from the hyperMILL® tool database can be synchronized with the Hummingbird MES at the touch of a button. This means that tools used for CAM programming are automatically transferred to the Hummingbird tool management system. All other processes such as machine setup, measuring, tracking and the use of tools in machines are mapped in the Hummingbird MES, thus ensuring a consistent exchange of information within the company.
